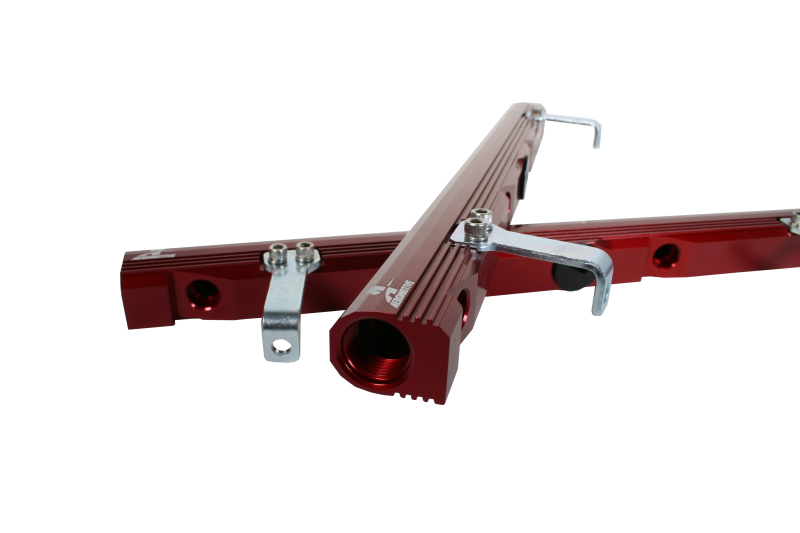

Aeromotive Fuel Rails - LS1 Edelbrock 29085
SKU 14147
MPN aer14147
$393.66 · Available to order
Aeromotive Fuel Rails - LS1 Edelbrock 29085
Aeromotive High Flow, Billet Fuel Rails combine 3,000 HP flow capabilities with ?bolt-on? ease of installation. Fits the Edelbrock? LS1 Intake?? Rails Only. ORB-08 Ports with compact connections and positive, leak-free sealing. Full 5/8? ID through bore, capable of supporting up to 3,000 HP. Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter P/N 15641. Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation. Additional inlet/outlet ports are provided where required for plumbing convenience. CNC-machined, billet aluminum construction for unequaled fit and finish. Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and ?bolt-on? ease of installation. Red, Type II bright dip anodized finish that looks great and protects against corrosion.
| Category | Fuel Delivery |
|---|---|
| Sub-Category | Fuel Rails |
| UPC | 684980002966 |
| CARB Approved | No |
| Prop 65 Warning | Y |
| Special Order | Yes |
| Weight | 5 lb |
| Dimensions (L×W×H) | 18 × 6.75 × 1.5 in |
