ARB

ARB Airlocker Fr 22Spl 10 Bolt Rg Suzuki S/N

SKU RD205

MPN arbRD205

$1299.95 · Available to order

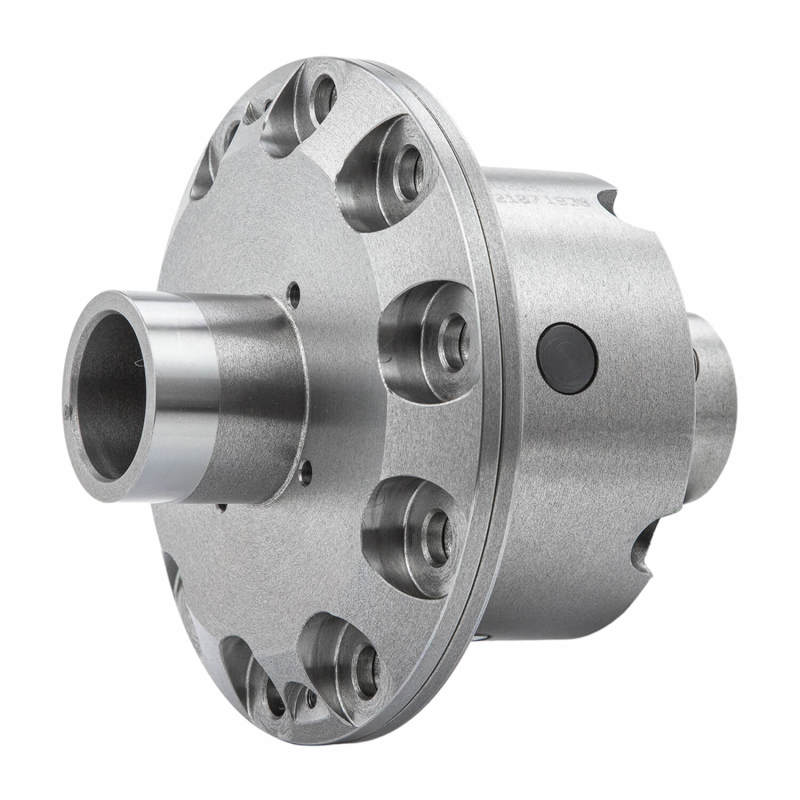

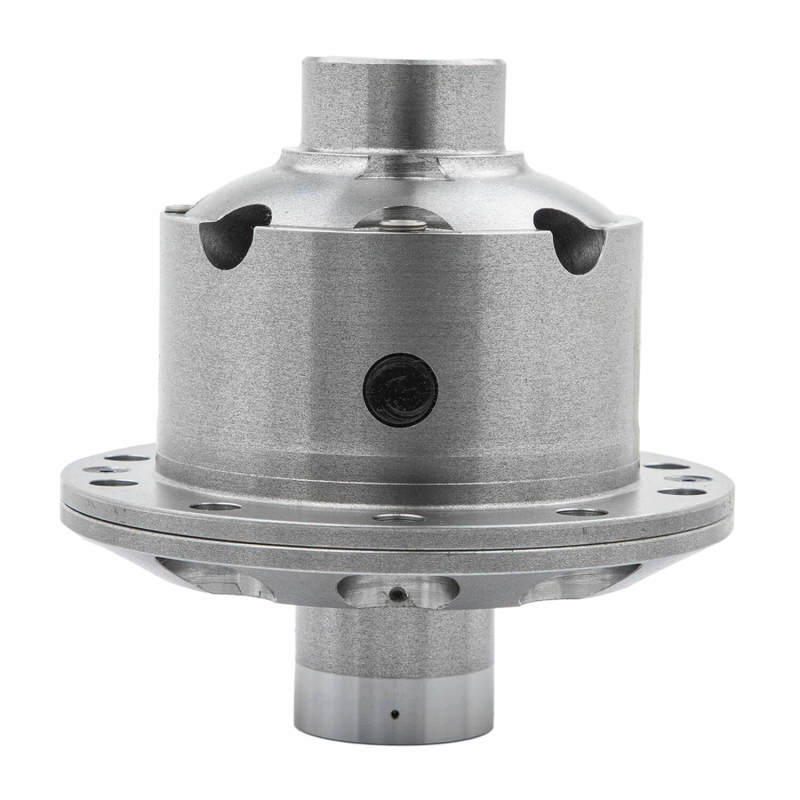

ARB Airlocker Fr 22Spl 10 Bolt Rg Suzuki S/N

The world's premier traction aid, an ARB Air Locker(TM) keep you moving in all conditions. With the flick of the switch an Air Locker gives instant lock at any moment and its super strong design allows activation at any speed allowing you to tackle the toughest terrain. The advantage of the Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the internal differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates like a conventional open differential. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.

Confirmed vehicle fitment
YearsMakeModelSubmodelDrive
1999SuzukiVitaraJS—
1999SuzukiVitaraJS Plus—
1989–1995SuzukiSidekickJLX—
1996–1998SuzukiSidekickJX Sport—
1999SuzukiGrand VitaraJLX—
1989SuzukiSamuraiBase—
1996–1998SuzukiSidekickJLX Sport—
1989–1997GeoTrackerLSi—
1997–1998SuzukiSidekickJS Sport—
1989–1997GeoTrackerBase—
1990–1998SuzukiSidekickJS—
1999SuzukiGrand VitaraJLX Plus—
1989–1998SuzukiSidekickJX—
1999SuzukiVitaraJX Plus—
1986–1988SuzukiSamuraiJX—
1991SuzukiSidekickJL—
1986–1988SuzukiSamuraiJA—
1989SuzukiSidekickJA—
1991SuzukiSamuraiJS—
1999SuzukiGrand VitaraJS—
1990–1995SuzukiSamuraiJL—
1991–1993SuzukiSamuraiJA—
1999SuzukiVitaraJX—
1986–1987SuzukiSamuraiJX SE—
1999SuzukiGrand VitaraJS Plus—
Specifications
CategoryDrivetrain
Sub-CategoryDifferentials
UPC9332018004086
CARB ApprovedYes
Prop 65 WarningY
Special OrderYes
Weight18 lb
Dimensions (L×W×H)12 × 11 × 11 in
