UMI Performance

UMI Performance 78-96 GM B-Body Boxed Lower Control Arms

SKU 3615-B

MPN umi3615-B

$329.99 · Available to order

UMI Performance 78-96 GM B-Body Boxed Lower Control Arms

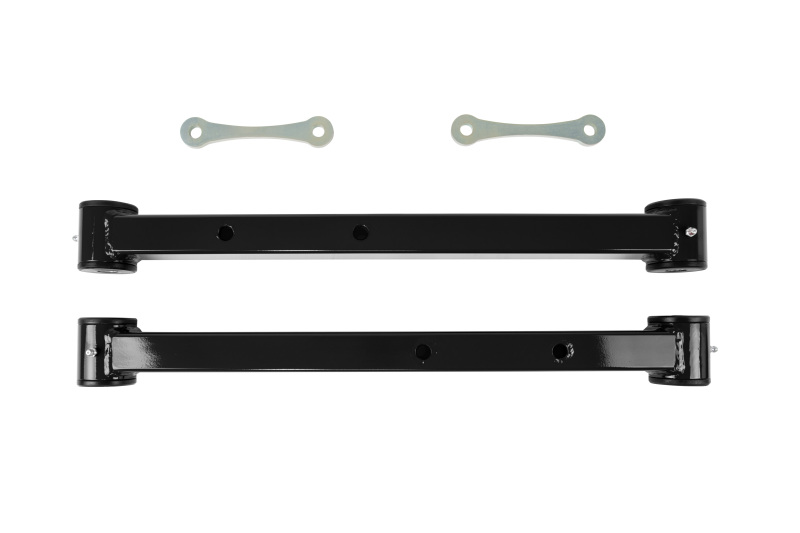

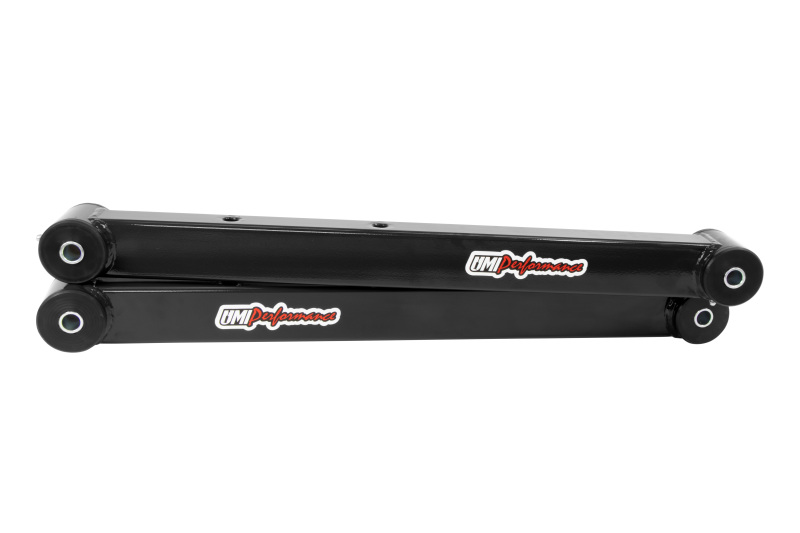

Rear control arms are one of the most important suspension modifications that can be done to your GM vehicle. Stock control arms are on the borderline of junk, bushing deflection and rusting weak stamped material add for traction loss and poor handling ability. Our boxed control arms are designed to give you the best of both worlds, whether your car is a weekend cruiser or a weekend track addict we got you covered. The included high quality polyurethane bushings are an excellent improvement over OEM rubber bushings, while adding ride improvements they also work excellent to reduce traction loss. These control arms are a direct bolt-on replacement designed to minimize wheel hop, improve cornering and help track consistency. Each control arm features the correct provisions for adding a stock or aftermarket sway bar. Sway bar holes are reinforced with a 0.120" wall thickness steel sleeve TIG welded and sanded into place. The construction of the control arms features 0.120" wall thickness rectangular tubing with CNC machined drawn over mandrel bushing holders and MIG welded end caps to keep out unwanted road debris. Features - Built using 0.120" Wall Thickness Rectangular Mild Steel Tubing - CNC Machined for Precision Tolerances and Accuracy - MIG Welded DOM Steel Bushing Holders - Grease-able high quality Bushings with Grease Fittings - Durable Long Lasting Powder Coat finish Installation: Installs in 1 hours using OEM hardware. All installation instructions included.

Confirmed vehicle fitment
YearsMakeModelSubmodelDrive
1978ChevroletCapriceClassic Estate—
1992–1995BuickRoadmasterLimited—
1979–1980ChevroletCapriceClassic Sport—
1981–1982ChevroletCapriceClassic Estate—
1985BuickLeSabreCollector's Edition—
1978BuickLeSabreCustom—
1979–1985BuickLeSabreLimited—
1978–1981BuickLeSabreSport—
1992–1995BuickRoadmasterBase—
1977–1981PontiacCatalinaSafari—
1978–1996ChevroletCapriceClassic—
1978–1981PontiacBonnevilleSafari—
1977–1981PontiacCatalinaBase—
1996BuickRoadmasterLimited Collector's Edition—
1982–1985BuickLeSabreCustom—
1996BuickRoadmasterEstate Wagon Collector's Edition—
1978–1981ChevroletCapriceClassic Landau—
1991–1995BuickRoadmasterEstate Wagon—
1982BuickLeSabreLimited Edition F/E—
1977–1981PontiacBonnevilleBrougham—
1993–1994ChevroletCapriceClassic LS—
1986–1992ChevroletCapriceBase—
1994–1996ChevroletImpalaSS—
1996BuickRoadmasterCollector's Edition—
1977–1981PontiacBonnevilleBase—
1978–1981BuickLeSabreBase—
1986–1990ChevroletCapriceClassic Brougham—
1987–1990ChevroletCapriceClassic LS Brougham—
1991–1993ChevroletCapriceClassic LTZ—
1985BuickLeSabreEstate Wagon—
Specifications
CategorySuspension
Sub-CategoryControl Arms
UPC3615-B
CARB ApprovedYes
Prop 65 WarningY
Special OrderYes
Weight19 lb
Dimensions (L×W×H)24 × 6 × 6 in
